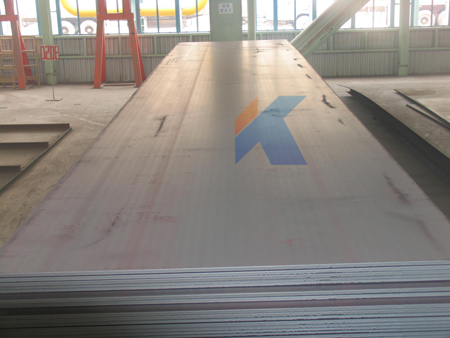

EN 10028 16Mo3 Plate

EN 10028 16Mo3 Plate

EN 10028-2 16Mo3 steel for Boiler and Pressure Vessel P235GH steel, P265GH, P295GH steel, P355GH

16Mo3 steel plate/sheet is one mainly of Steel for boiler steels.EN10028 16MO3 steel is mainly used for boilers and pressure vessels with elevated temperatures. 16Mo3 steel equivalent to DIN17155 15Mo3 and UNI5869 15Mo3, 15D3 (NFA 36205 ) and ASTM A204Gr.B.



16Mo3
EN 10028-2
Number:1.5415

Comparison of steel grades

DIN 17155

15 Mo 3

NFA 36-205

15 D3

UNI 5869

15 Mo 3

BS 1501

1503 - 243 B

UNE 36087

16 Mo 3

ASTM

A 204 Gr. B

JIS G3115

-

Main chemical composition Carbon from 0.12 to 0.20, Manganese from 0.40 to 0.90, Sulphur max 0.01, Phosphorus max 0.025, Silicon max 0.350,Molybdenum from 0.25 to 0.35, Chromium max 0.30. 16Mo3 material is mainly used to fabricate boiler and pressure vessel. So ,same the other boiler and pressure vessel using steel plate, this kind of steel has the good grain and mechanical properties. It's yield strength is from 220 to 275 MPa.16Mo3 tensile strength is from 440 MPa to 590 MPa.

EN 10028-2 16Mo3 Steel Chemical Composition (% by weight)

Grade

C.
max

Mn.

S.

N

Cu

Si.

P.

Cr.

Ni.

Mo.

16Mo3

0.12-
0.2

0.40-
0.90

0.01

0.012

0.30

0.35

0.025

0.30

0.30

0.25-
0.35

Mechanical Properties


Grade

Tensile Strength
(Mpa)

Yield Strength
(Mpa)

Elongation in
100-150 mm(%)

Elongation in
16 mm(%)

Max Thickness
(mm)

16Mo3

440-590

220-275

19

24

250

Shanghai Katalor Industry Co., Ltd Will return you with high-quality products and complete after-sale service with the lowest price. we committed to exceed customer’s expectation on the basis of quality, price, and delivery. We sincerely hope to establish long-term cooperation relationship with you on the basis of mutual benefit, reciprocity and common development.As 16Mo3 Mechanical and 16Mo3 suppliers,we can supply 16Mo3 plate,16Mo3 sheet and 16Mo3 thick plates for you ,please click to contact us
