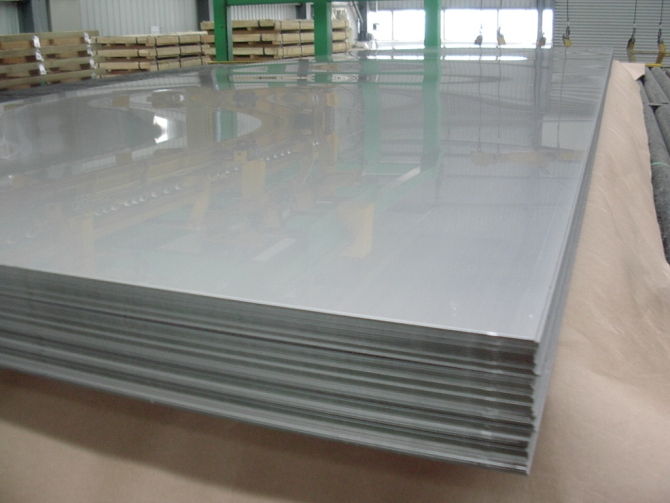

SA387 Grade 11 Class2 ,SA387 Steel Plate for use in Boilers and Pressure

Posted:12/17/2015 1:03:30 AM

SA 387 Grade 11 Class 2 Steel Plate supplied by us are accepted by clients in various spheres of the industries ranging from basic industries.ASME SA387 Grade 11 Class 2 is used in a variety of industries and is highly effective, particularly in the oil, gas and petrochemical industry, where liquids and gases are often stored at higher temperatures.

STEEL DIMENSION WE MAINLY SUPPLY:Thickness: 6MM to 300MM,Width: 1500mm to 4050mm,Length: 3000mm to 15000mm

A387 Gr.11 CL.2Chemical Composition

A387 Gr.11 CL.2Chemical Composition

Grade

The Element Max (%)



C

Si

Mn

P

S

Cr

Mo

A387 Gr.11 Cl.2

0.04-0.17

0.44-0.86

0.35-0.73

0.035

0.035

0.94-1.56

0.40-0.70

Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

Tensile Requirements – SA/A387 Grade 11 Class 2
Yield MPa
Tensile MPa
Elongation (50mm)
Reduc’n of Area*
310 min
515 to 690
22% min

we are supplying SA 387 Grade 11 Class 2 Steel Plate in Iran, Saudi Arabia, United Arab Emirates, Singapore, Malaysia. etc.To find more about our services and ASME SA387 Grade 11 Class 2 steel plates,please contact us by email or chat with our liveperson,we can give you the best service!
