Quality Steel P235GH
Quality steel P235GH is a European specified steel for use in pressure vessels, boilers and heat exchangers. P235GH material number is 1.0345.
P235GH equivalent astm is A285Gr.C steel.
Quality steel P235GH is a normalized carbon alloy steel and is available ex-stock from our warehouse with mill certification and stamping. This EN10028 steel grade supersedes the older BS and DIN standards (Grades BS 1501-161-360A and DIN H 1, respectively). The composition of this steel makes it ideal for applications where elevated working temperatures are the norm and the material is used by fabricators throughout the oil, gas and petrochemical industry.

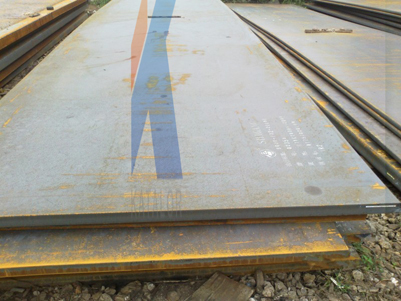

P235GH Plates Specification
Thickness: 3-150mm
Width: 1220-4200mm
Length: 5000-18000mm
Notes: coil thickness ≤ 25mm
Quality Steel P235GH Mechanical Properties:
P235GH |
Thickness |
Yield |
Tensile |
Elongation |
Impact Energy(KV J) min |
||
mm |
Min Mpa |
Mpa |
Min % |
-20° |
0° |
+20° |
|
≤ 16 |
235 |
360-480 |
24 |
27 |
34 |
40 |
|
16<t ≤40 |
225 |
360-480 |
24 |
27 |
34 |
40 |
|
40<t ≤60 |
215 |
360-480 |
24 |
27 |
34 |
40 |
|
60<t ≤100 |
200 |
360-480 |
24 |
27 |
34 |
40 |
|
100<t≤150 |
185 |
350-480 |
24 |
27 |
34 |
40 |
|
150<to ≤250 |
170 |
340-480 |
24 |
27 |
34 |
40 |
