LR EH32 Shipbuilding Steel Plate Equivalent Steel Grade

Posted:2016/8/10 5:16:24

LR EH32 with good toughness properties, higher strength. LR EH32 are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.

LR EH32 with good toughness properties, higher strength. LR EH32 are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans.

LR EH32 Shipbuilding Steel Chemical Composition


Element

LR EH32Max %

Element

LR EH32max %

C

0.18

Ni

0.40

Mn

0.90-1.60

Mo

0.08

Si

0.50

Al

0.015 min

S

0.035

Nb

0.20-0.05

P

0.035

V

0.03-0.10

Cu

0.35

Ti

0.02

Cr

0.20

N



LR EH32 Shipbuilding Steel Mechanical Property


Grade

Thickness(mm)

Min Yield (Mpa)

Tensile(MPa)

Elongation(%)

Min Impact Energy

EH32

8mm-50mm

Min 315Mpa

440-590Mpa

22%

-40

34J

51mm-70mm

Min 315Mpa

440-590Mpa

22%

-40

38J

71mm-100mm

Min 315Mpa

440-590Mpa

22%

-40

46J

The min impact energy is longitudinal energy

LR EH32 Equivalent Steel Grade


Equivalent steel grade of LR/EH32

DNV

GL

ABS

BV

CCS

NK

KR

RINA

NV E32

GL-E32

AB/EH32

BV/EH32

CCS/E32

K E32

R E32

RI/E32

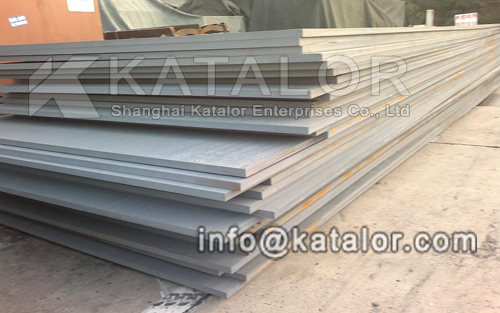

LR EH32 Shipbuilding Steel Specification

Thickness: 3mm-260mm
Width: 1000mm-4000mm
Length: 3000mm-12000mm
We can supply any size based on customer΄s requirement.

Delivery States:

ThedeliveryStatesofLR EH32steelplateisPretreatment, CRorNormalizing.
CR,N,TM,QT(QuenchingandTempering)andotherdeliverystates.

Shipbuilding steel grade, AH32, AH36, DH32, DH36, EH32, EH36, EH40, FH32, EH36 are the high tensile strength steel. If you need AH32, AH36, DH32, DH36, EH32, EH36, EH40, FH32, EH36 shipbuilding steel plates/sheet/bar or chemical composition, mechanical property, and yield strength, please contact us, we will try our best to help you.
