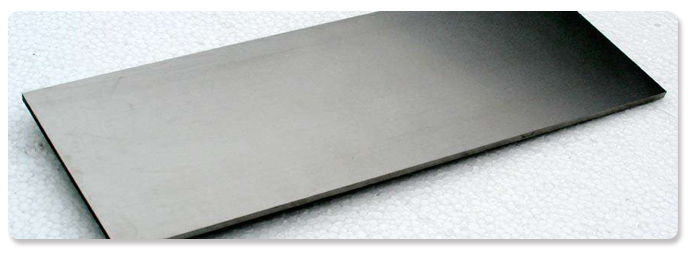

EN 10025-2 S235J0 low carbon high strength structural steel plate

Posted:2016/8/17 22:44:27





S235J0 is a low carbon, high tensile strength structural steel which can be readily welded to other weldable steel. With its low carbon equivalent, it possesses good cold-forming properties. The plate is produced by fully killed steel process and supplied in normalized or controlled rolling condition.





S235J0 Physical properties:



Grade

Thickness (mm)

Min Yield (Mpa)

Tensile (Mpa)

Elongation (%)

Min Impact Energy

S235J0

8mm-100mm

215Mpa-235Mpa

360-510Mpa

24-26%

0

27J

101mm-200mm

185-195Mpa

350-490Mpa

22%

0

27J

201mm-400mm

-

-

21%

0

27J

The min impact energy is longitudinal energy



S235J0 Chemical composition:



C

Mn

P

S

N

Cu

CEV

max   0.17

max   1.4

max   0.035

max   0.035

max   0.012

max   0.55

max   0.38



S235J0 Meaning:
S... - Structural steel
E... - Engineering steel;
.235... - Minimum yield strength (ReH) in MPa at 16mm;
...JR.. - Longitudinal Charpy V-notch impacts 27 J at + 20°C;
...J0.. - Longitudinal Charpy V-notch impacts 27 J at 0°C;
...J2.. - Longitudinal Charpy V-notch impacts 27 J at - 20°C;



S235J0 Application:
Structural application in freight cars, transmission towers, dump trucks, cranes, trailers, bull dozers, excavators,
forestry machines, railway wagons, dolphins, penstocks, pipes, highway bridges, building structures, oil and gas platforms,
offshore structures, shipbuilding, power plant, palm oil equipments and machineries, fans, pumps, lifting equipments
and port equipments.



S235J0 Specifications:
Thickness 8mm-300mm,
Width: 1500-4020mm,
Length: 3000-27000mm



katalor is specialized in exporting S235J0 steel plates. We have ten years experience in supplying S235J0 steel plates. Besides that, We have powerful relationship with our mill, so we could promise you the short delivery time and the competitive price comparing with any other company.
