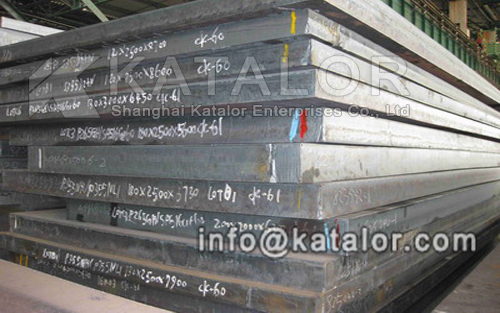

ASTM A572 Grade 60 Structural Steel Special Material
A 572 Gr.60 steel plate is high strength low alloy columbium-vanadium structural steel grade.Compare with A572 Gr.50, A 572 Gr.60 steel has a more yield and tensile strength in project. If you want to more yield, you could choose A572 Gr.65 to use them in your projects.
Chemical composition % of the Product analysisof gradeA572 Grade60 .
|
A572 Grade 60 Chemical Composition |
||||||||
|
Grade |
The Element Max (%) |
|||||||
|
C |
Si |
Mn |
P |
S |
V |
Ni |
Co |
|
|
A572 Grade 60 |
0.26 |
0.4 |
1.35 |
0.04 |
0.05 |
0.06 |
0.015 |
0.05 |
Mechanical properties of gradeA572 Grade 60 Structural Steel
|
Grade |
Thickness(mm) |
Min Yield (Mpa) |
Tensile(MPa) |
Elongation(%) |
|
A572 Grade 60 |
8mm-50mm |
415Mpa |
520Mpa |
20% |
|
50mm-200mm |
415Mpa |
520Mpa |
24% |
|
|
The min impact energy is longitudinal energy |
||||
ASTM A572 Grade 60 Other steel category:
|
Boiler steel plate |
Marine steel |
Corten steel plate |
Stainless steel plate |
HSLA steel plate |
|
API Pipeline steel |
Spring steel |
Cold rolled steel |
High Yield Steel |
Section steel |
A572 Grade 60 Structural Steel Specification:
Grade :A572 Grade 60
Thickness 8mm-200mm,
Width: 1500-4000mm,
Length: 3000-12000m
Besides, the size can be customized.
Standard: ASTM A572Standard Specification for High-Strength Low-Alloy Columbium-Vanadium Structural Steel
Approval By Third Party：ABS, DNV, GL, CCS, LR , RINA, KR, TUV, CE
As a very long history company, Shanghai Katalor Enterprise had enough experience about the quality, price for these goods in China Market. we are a professional A 572 Gr.60 steel plate stockist and supplier. We can supply different product type and grades of ASTM A572 Grade 60 Structural Steel . If you want to get the price, please do not hesitate tocontact us.
